multi-layered air defence system

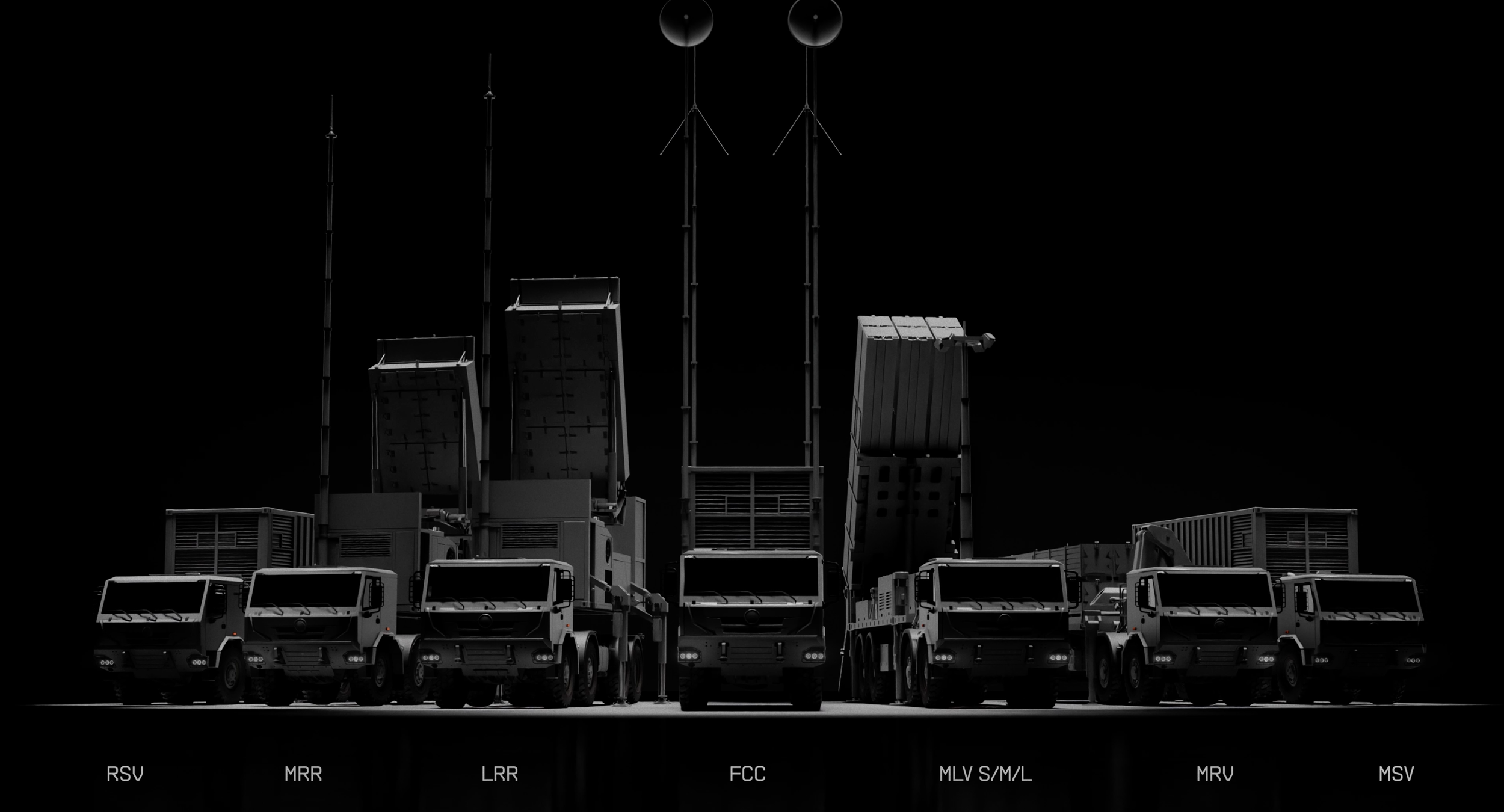

PHOTO final.png

covering three layers of AIR DEFENCE
shorad, mrad, lrad

About

The TRIDENT is a modern Multi-Layered Air Defence System. The TRIDENT uses an advanced surface-to-air missiles and high-performance radar systems. The system ensures early warning capability and allows multiple target tracking and interception. It is designed to intercept variety of aerial targets such as fighter jets, high-altitude bombers, helicopters, UAVs and cruise missiles.

01

Advanced surface-to-air missiles missiles & high-performance radar systems

02

Early warning capability with multiple target tracking

03

Intercepts fighter jets, bombers, helicopters, UAVs & cruise missiles

system architectute

configuration

The concept and system architecture are designed by EXCALIBUR INTERNATIONAL, radars and command and control systems are manufactured by Czech company RETIA and missiles are developed by Turkish company ROKETSAN. The system is fully mobile, all key components are integrated on TATRA heavy-duty chassis.

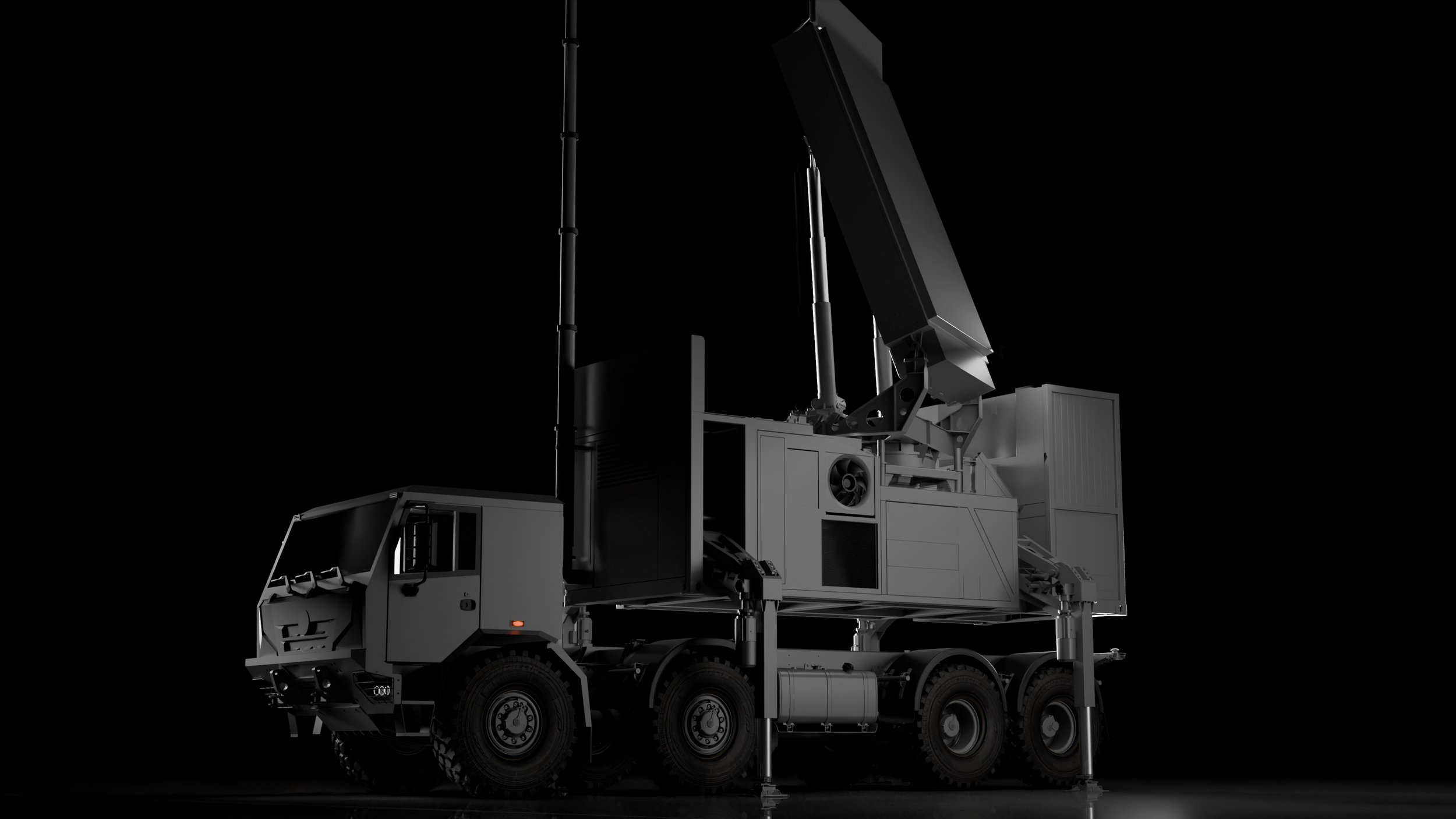

Long-Range Multirole Radar

  • Instrumented Range 470 km

  • Surveillance and Fire Control Mode

  • Full AESA Solid-State Technology

  • Advanced ECCM Features

  • Instrumented Range 200 km

  • Surveillance and Fire Control Mode

  • Full AESA Solid-State Technology

  • Advanced ECCM Features

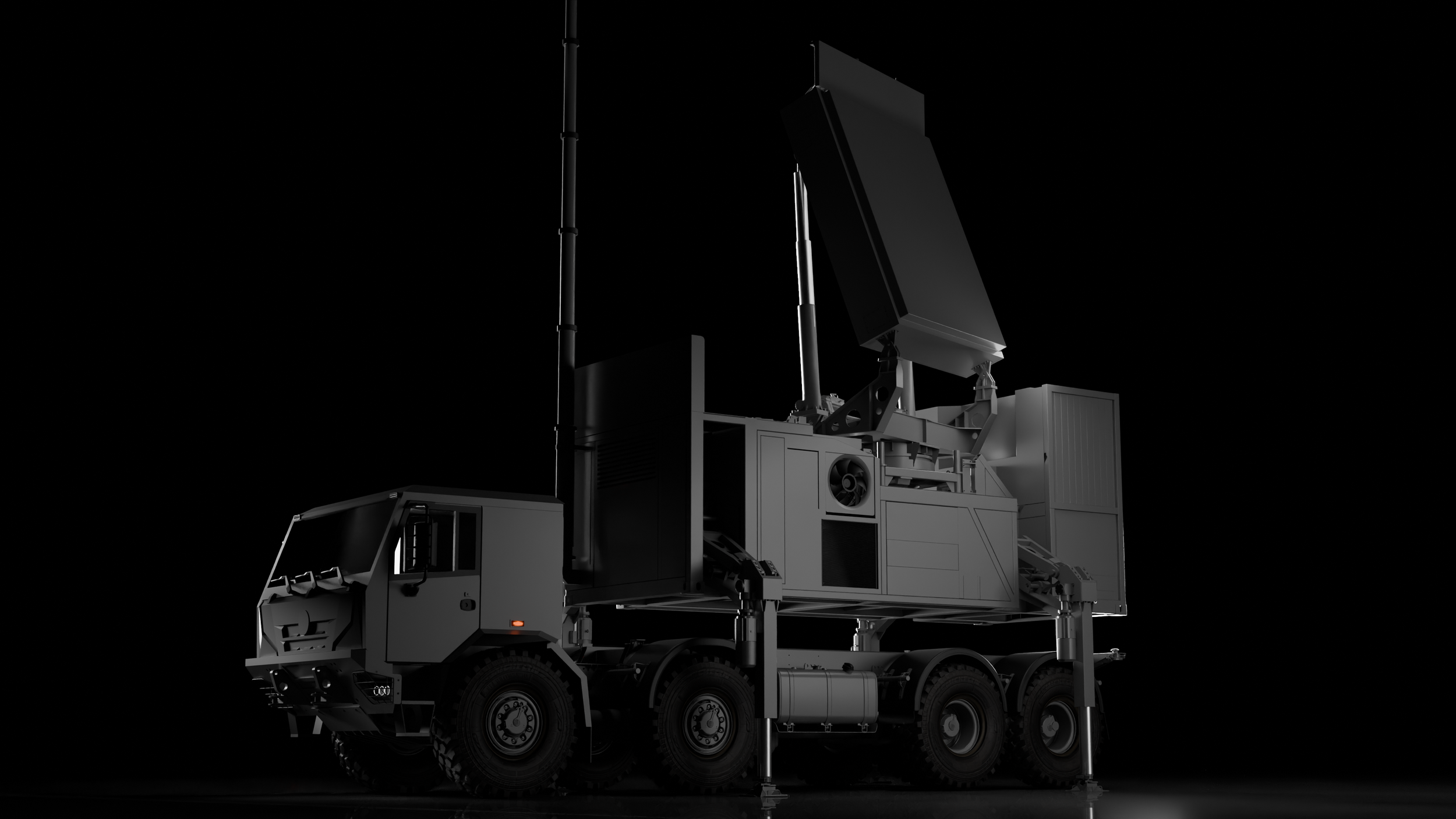

medium-Range Multirole Radar

  • Universal Transport Platform

  • Short Operation Time

  • ensured High Mobility

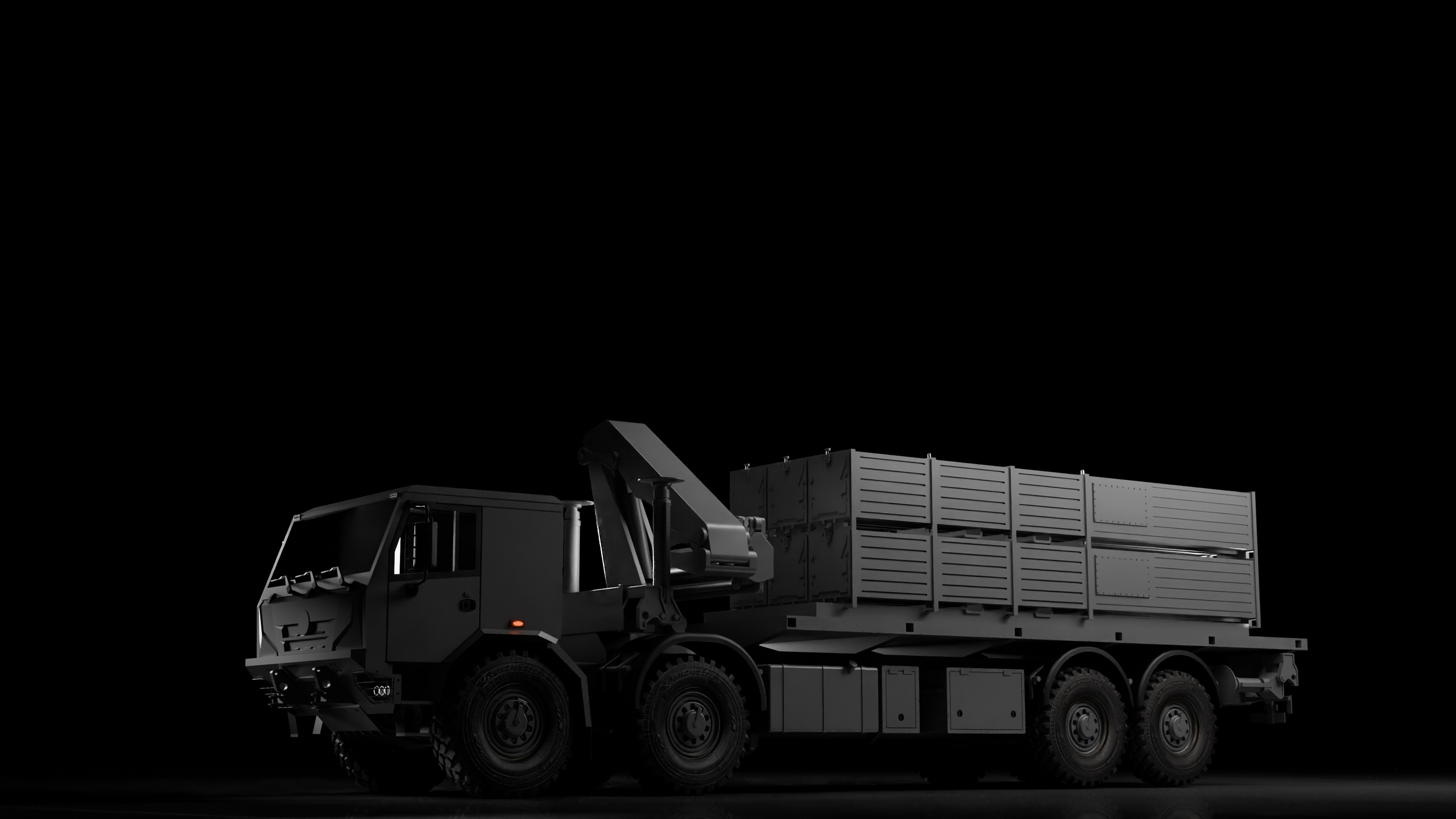

Missile Reloading Vehicle

  • Datalink and IIR Seeker Guidance

  • Proximity Fuse Terminal Phase

  • HE Fragmentation Warhead

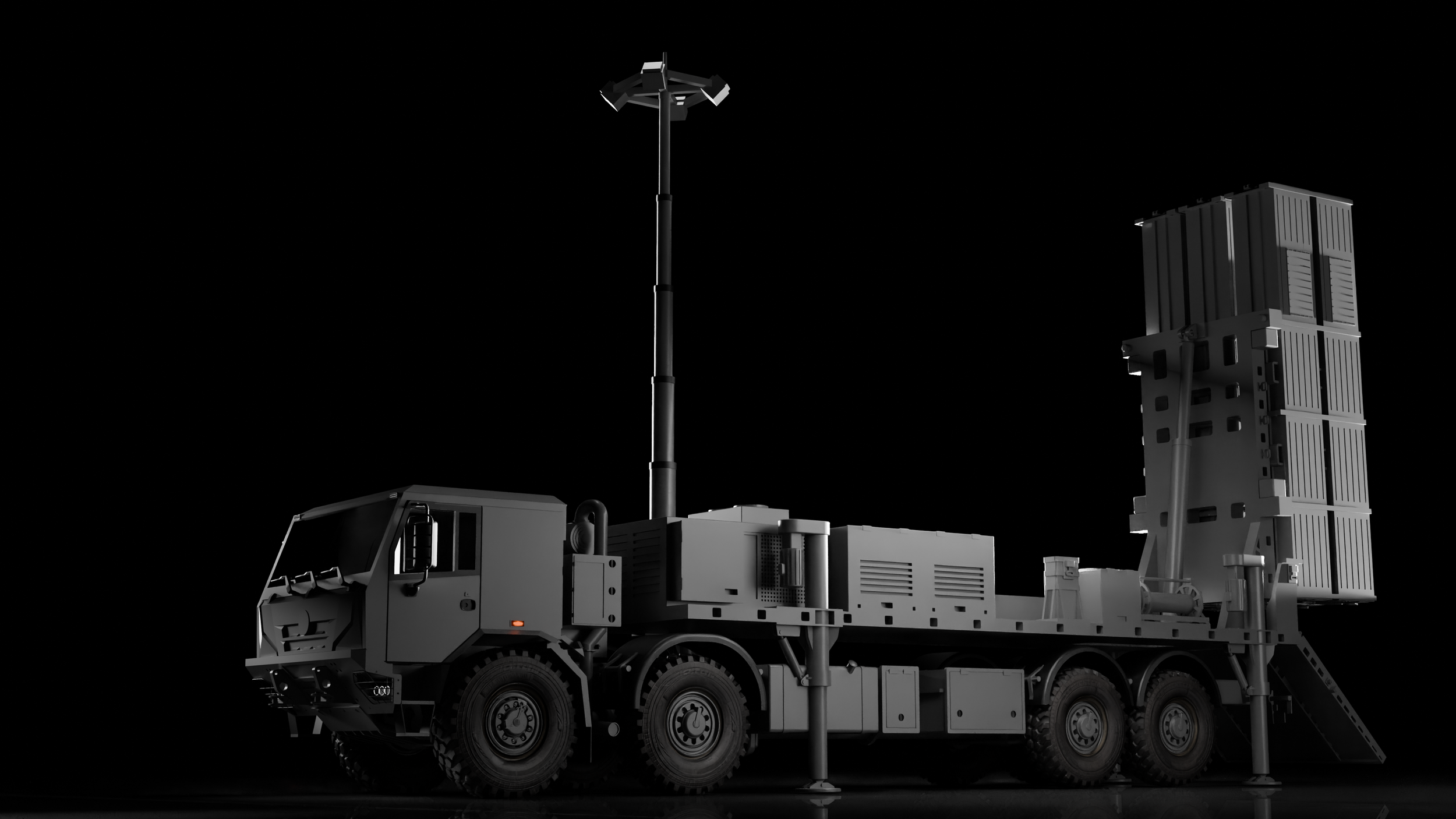

Short-Range Missile System

  • Datalink and IIR or rf seeker guidance

  • Proximity Fuse Terminal Phase

  • HE Fragmentation Warhead

Medium-Range Missile System

  • Datalink and rf seeker guidance

  • Proximity Fuse Terminal Phase

  • HE Fragmentation Warhead

LONG-Range Missile System

  • Open Architecture

  • Automated C4I Features

  • Enhanced Situational Awareness

  • Integrated Combat Planning Tools

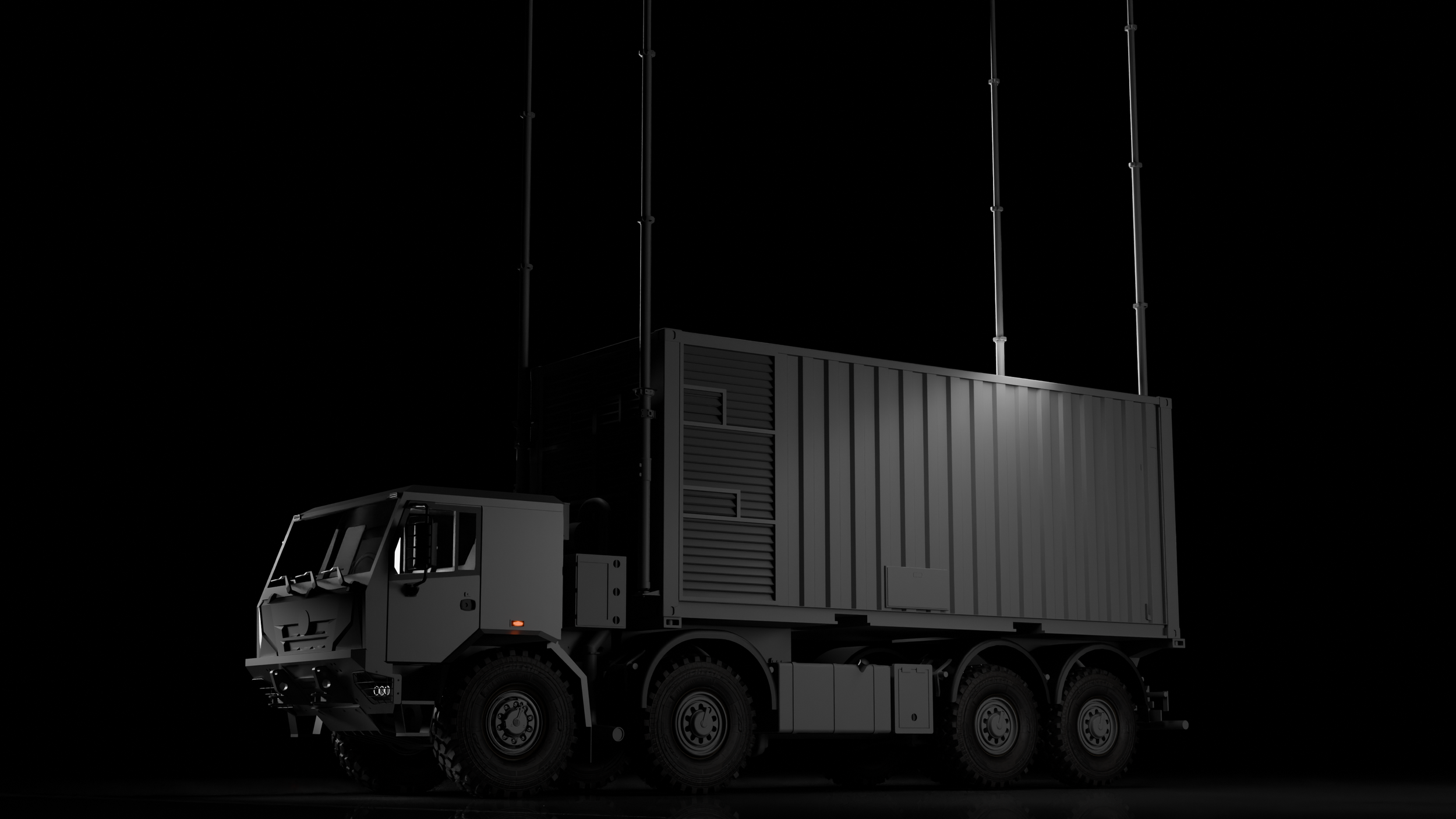

Fire control Center

  • modular system

  • on field maintenance ensured

  • ensured high mobility

radar support Vehicle

  • modular system

  • on field maintenance ensured

  • ensured high mobility

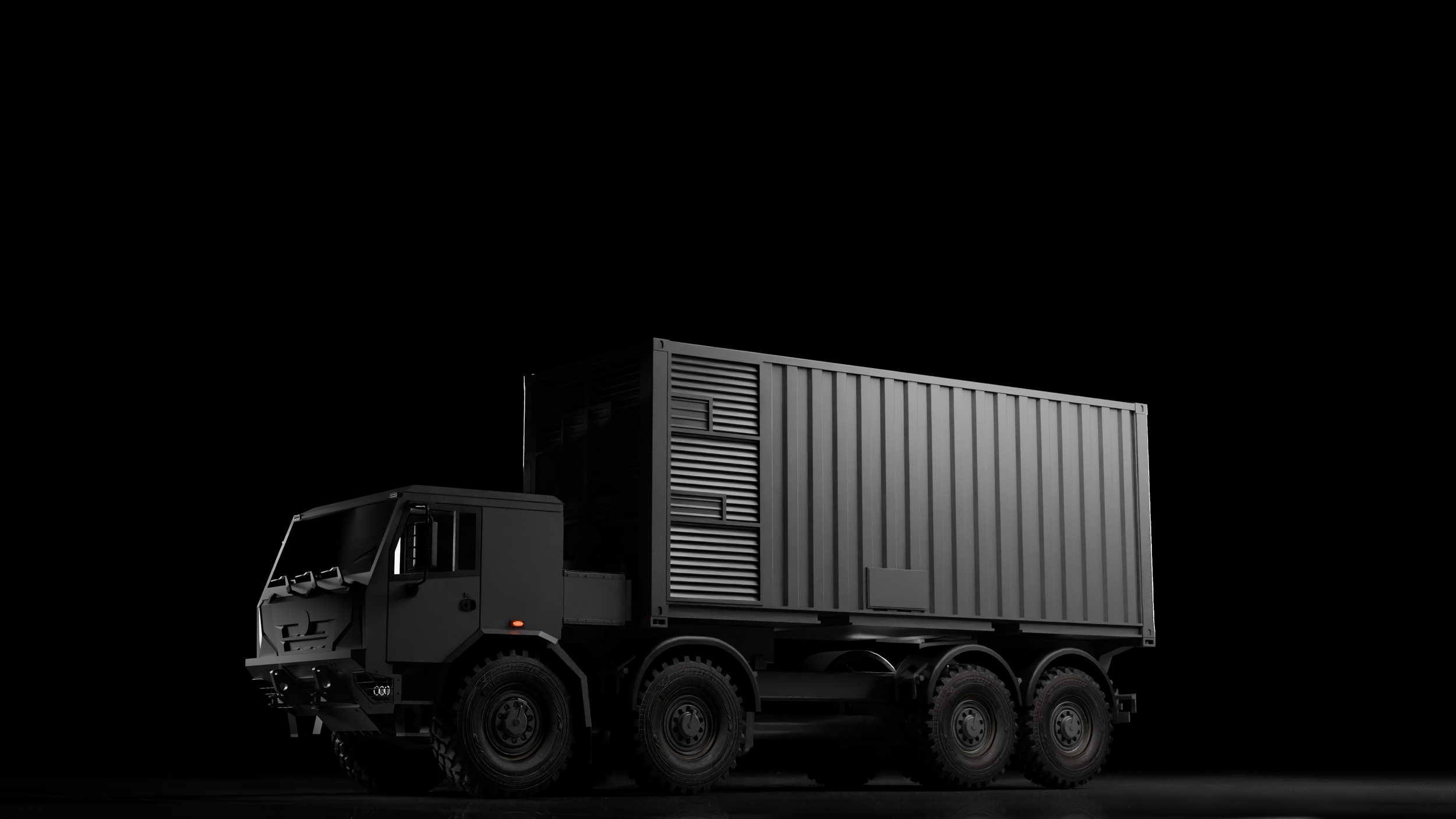

Missile support Vehicle

Radars

Our cutting-edge Multirole Radar Family is optimized for the effective cooperation with air defence systems. It is designed to provide long range surveillance, discover potential threats and provide high precision tracking of enemy targets in parallel with guidance of launched missiles. Both Medium-Range ReSAURION RBS21 and Long-Range ReSAURION RBS41 Multirole Radars are capable of operating in rotary mode (360°) for surveillance or sector mode (90°) for missile guidance. This ensures high versatility and survivability.

SENSOR SYSTEMS

RBS41 INSTRUMENTED RANGE

470 km

360°

ROTARY SURVEILLANCE MODE
RBS21 INSTRUMENTED RANGE

200 km

SECTORE GUIDANCE MODE

90°

missiles

The Air Defence Missile Family represents line of highly agile missiles capable of engaging any type of airborne target. The backbone of our Air Defence Missile Family is Short-Range Air Defence Missile, Medium-Range Air Defence Missile and Long-Range Air Defence Missile. These missiles are highly effective against variety of targets such as fighter jets, high altitude bombers, UAVs, anti-radiation missiles and cruise missiles. The best-in-class parameters are ensured by the continuous advancement in missile development.

effectors

short, medium and long range air defence missiles with range

up to 100 km

Fire control center

New generation of C4I system ReCUBE designed for sophisticated air defence systems. Its open architecture enables seamless integration with variety of sensors like active or passive radars, electro-optical cameras or other available sensors and effectors like short, medium, and long-range missile systems for safe elimination of different kinds of threats. Fast decision-making process is implemented to reduce stress on system's operator and improve response time.

C4i SYSTEMS

Open Architecture

Seamless sensor & effector integration

Automated C4I Features

Reduced operator stress, faster response

Enhanced Situational Awareness

Full battlefield picture in real time

Integrated Combat Planning Tools

Comprehensive mission & threat planning

KEY FEATURES

CAPABILITIES

■

EARLY WARNING
CAPABILITY

OPEN
ARCHITECTURE

FAST DECISION-MAKING
PROCESS

MULTIROLE
CAPABILITY

CUSTOMIZABLE
CONFIGURATION

ENHANCED ECCM
CAPABILITIES

ITAR FREE
SOLUTION

BEST-IN-CLASS
PERFORMANCE

HIGH MOBILITY
AND RESILIENCE

combat training
simulation

partners

consortium

The TRIDENT is complex joint production air defence system of Czech industrial holding CSG, one of the largest industrial groups in Central Europe and Turkish defence company ROKETSAN, one of the world's leading advanced missile systems manufacturers. TRIDENT is a product of joint production effort of CSG companies (EXCALIBUR INTERNATIONAL, RETIA and TATRA TRUCKS) and ROKETSAN. The system architecture is designed for strategic defence needs to counter evolving air threats.

System Architect
and Prime contractor

Radar and c4I
Systems Manufacturer

Missile and Weapon
Systems Manufacturer

Military Heavy-duty
Trucks Manufacturer

get in touch

■

■

Interested in the trident system?

Our team is ready to answer your questions and provide detailed technical information.
